HP 761 Yellow DesignJet Printhead. Compatibility: HP Designjet T7100, Print technology: Dye-sublimation, Printing colours: Yellow. Width: 28 mm, Depth: 143 mm, Height: 132 mm. Package dimensions (WxDxH): 28 x 143 x 132 mm, Package width: 28 mm, Package depth: 143 mm. Master (outer) cases per pallet: 80 pc(s), Products per pallet: 1920 pc(s), Layers per pallet: 10 pc(s). Quantity per box: 1 pc(s)

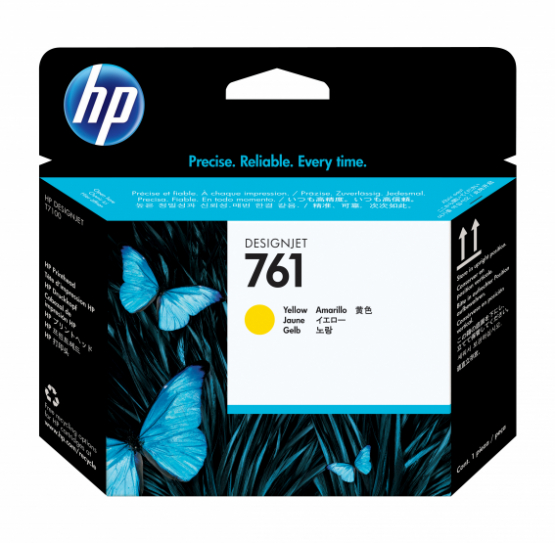

HP 761 DesignJet Printhead Yellow CH645A
Compatible with:
| Identifiers | |
| SKU | CH645A |
| OEM Part Number | CH645A |
| Performance | |
| Compatibility | HP Designjet T7100 |
| Print technology | Dye-sublimation |
| Printing colours | Yellow |
| OEM code | CH645A |
| Country of origin | Singapore |
| Weight & dimensions | |
| Width | 28 mm |
| Depth | 143 mm |
| Height | 132 mm |
| Weight | 70 g |
| Packaging data | |
| Package dimensions (WxDxH) | 28 x 143 x 132 mm |
| Package width | 28 mm |
| Package depth | 143 mm |
| Package height | 132 mm |
| Package weight | 110 g |
| Operational conditions | |
| Operating temperature (T-T) | 20 - 25 °C |
| Operating relative humidity (H-H) | 40 - 55% |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 8 - 90% |
| Logistics data | |
| Master (outer) cases per pallet | 80 pc(s) |
| Products per pallet | 1920 pc(s) |
| Layers per pallet | 10 pc(s) |
| Pallet gross weight | 248 kg |
| Other features | |
| Print cartridge volume (metric) | Not applicable |
| Quantity per box | 1 pc(s) |
| Logistics data | |
| Pallet dimensions (W x D x H) | 1219 x 1016 x 1325 mm |
| Other features | |
| Compatible ink types, supplies | Dye-based |
| Ink drop | 9 pl |
| Print head swath | 2.24 cm (0.88") |
| Stacking number for carton | 8 |
| Print head nozzles | 2112 |
| Retail only | N |
